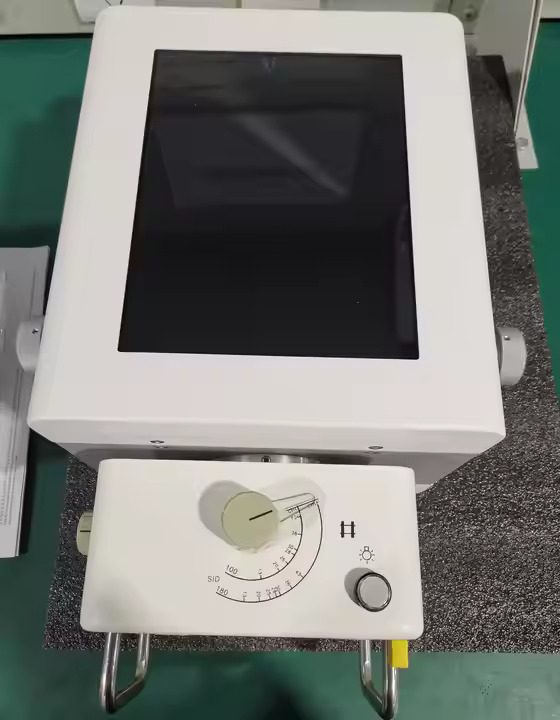

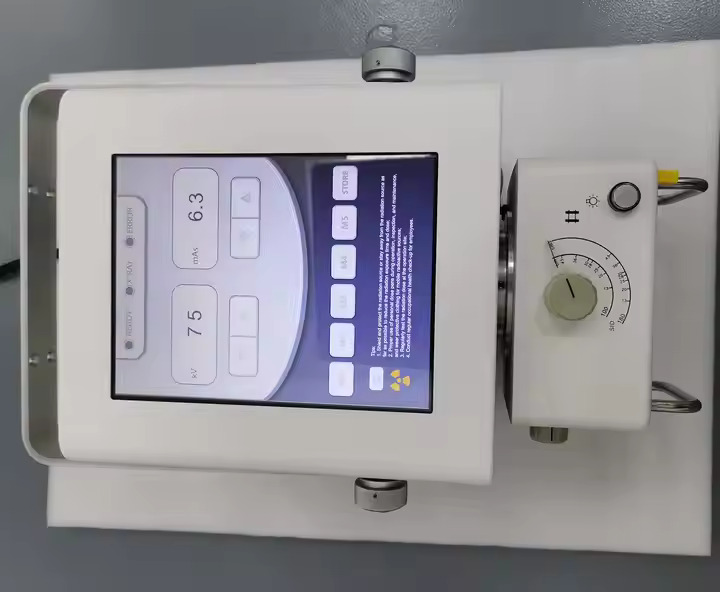

5KW 100mA Chest Portable X-Ray Machine, designed to deliver reliable diagnostic imaging in a compact and mobile form. Engineered for flexibility and ease of use, it is ideal for bedside imaging in hospitals, emergency care units, field operations, and mobile clinics.
The X-ray tube is equipped with dual focal spots (0.6/1.8 mm) and a 15° anode angle, ensuring sharp, high-resolution images with efficient heat management. Despite its powerful performance, the unit remains lightweight at only 16 kg, with a compact form factor of 505 x 348 x 230 mm, making it highly portable and space-efficient.
Key Features:
- Power Output: 5KW
- Tube Current: 100mA max
- Voltage Range: 40–125 kVp
- Portable & Lightweight: Only 16 kg
- Exposure Modes: Wired & Wireless
- Focal Spot Tube: 0.6 / 1.8 mm

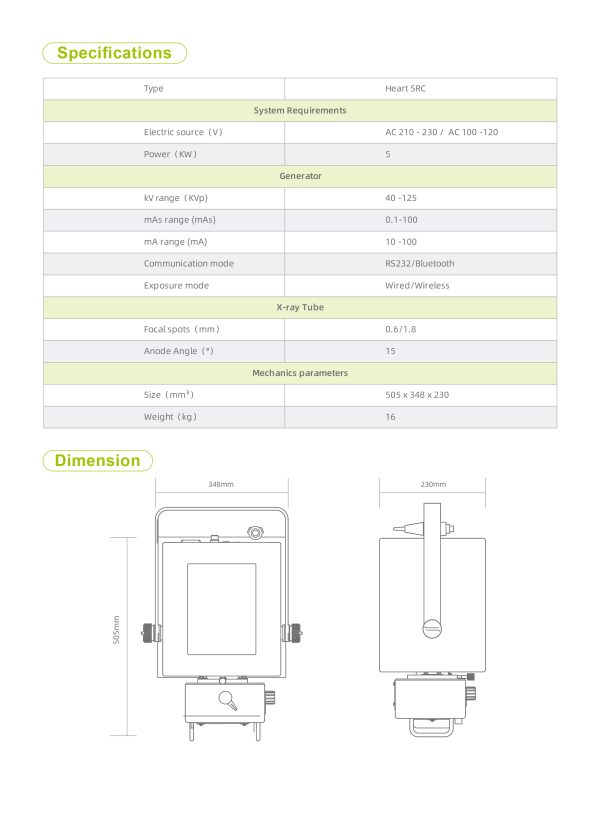

Product Specifications
Model Type: Heart 5RC
System Requirements
- Electric Source (V): AC 210–230 / AC 100–120
- Power (kW): 5
Generator
- kV Range (kVp): 40–125
- mAs Range (mAs): 0.1–100
- mA Range (mA): 10–100

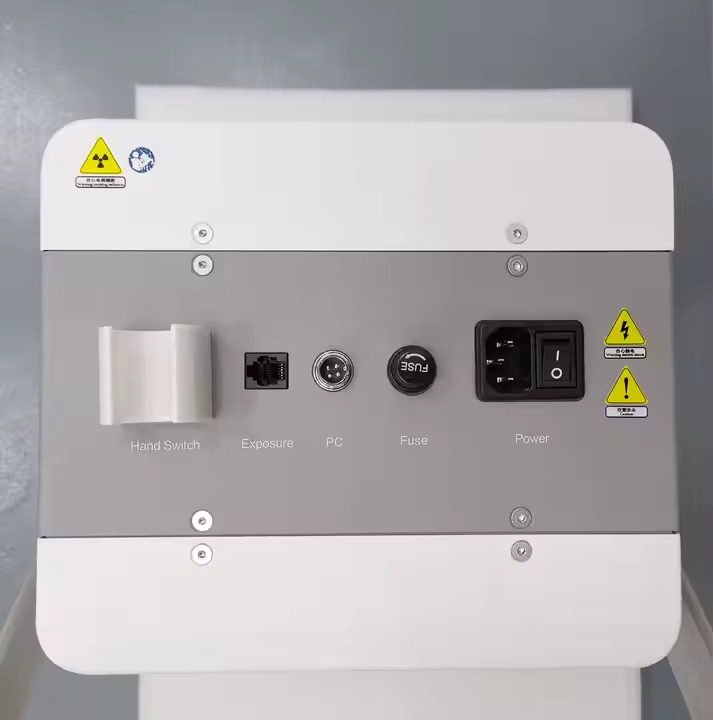

- Communication Mode: RS232 / Bluetooth
- Exposure Mode: Wired / Wireless
X-ray Tube
- Focal Spots (mm): 0.6 / 1.8
- Anode Angle (°): 15
Mechanical Parameters
- Size (mm³): 505 × 348 × 230
- Weight (kg): 16
Product Dimensions
The device has a compact, rectangular design with the following external dimensions:
- Height: 505 mm
- Width: 348 mm
- Depth: 230 mm
Two views are depicted: front and side elevations, illustrating its ergonomic and space-efficient form factor.
