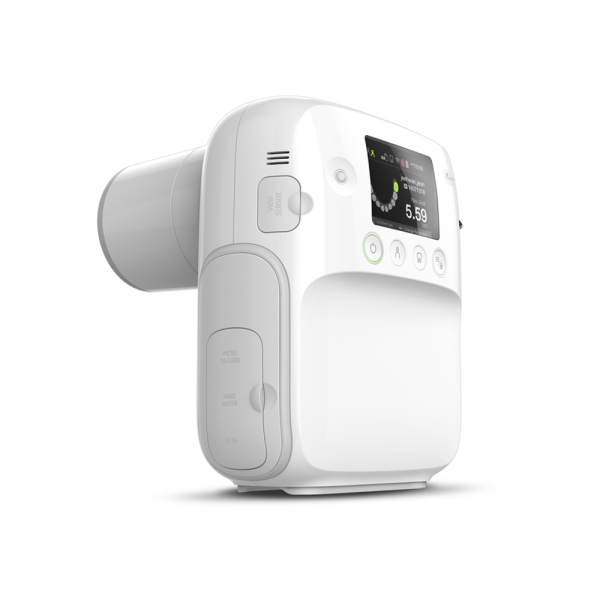

Genoray moveable port x iv is a complicated version of port x ii that has all the options of port x ii at the side of some new options which will enable you to visualize the captured x ray image instantly on the device show at the side of wireless file transfer practicality.
General Features:
- Light weighted and compact body design with rechargeable batteries enable you to shoot easily and to keep everywhere
- Small dose of radiation keeps patients and dentists far from radiation
- High Performance tube and HFG makes sharp and clear pictures
- Can be used with both digital sensor and chemical film
- Easy information transfer with Wireless to computer and Mobile application
- Direct connection with digital intra oral sensor for mobile dental clinic or emergencies
- Straightforward process for image capture with intuitive icons
Design Features:

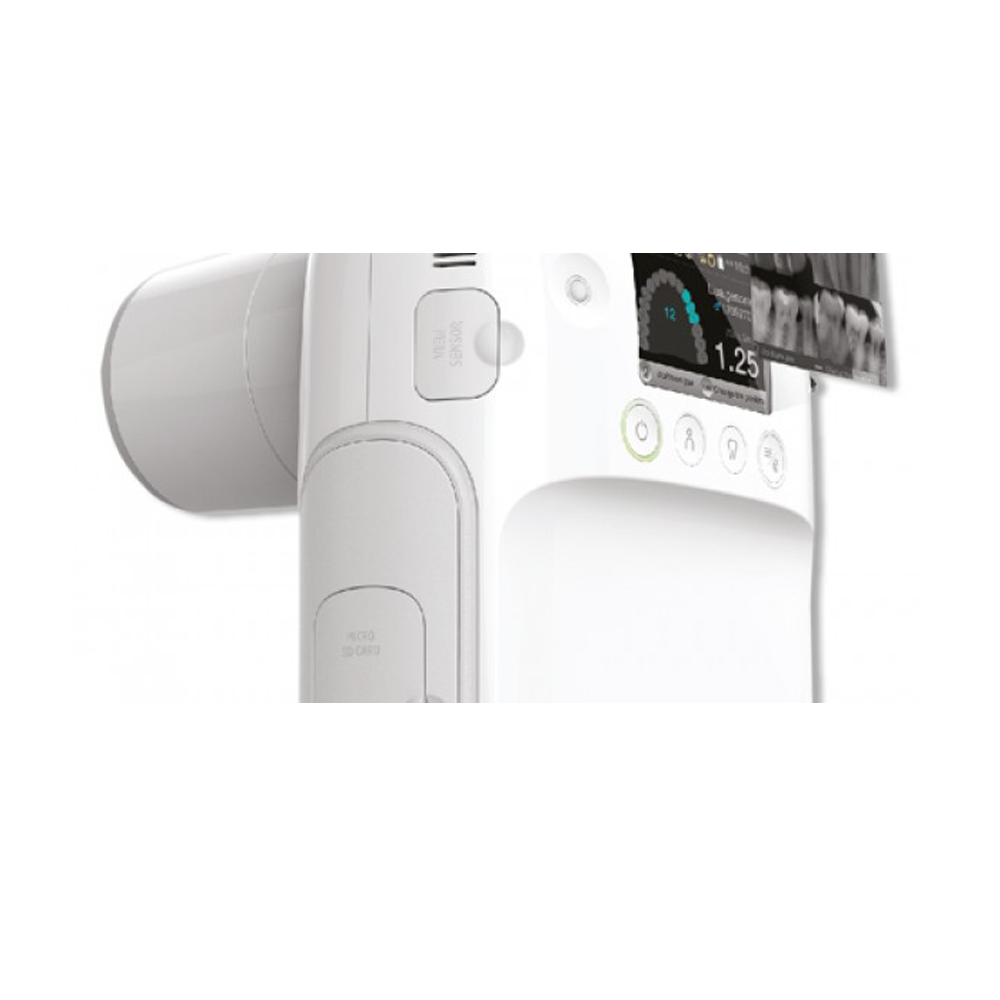

- Color LCD– Users can view the operation through colorful graphic LCD with very high quality
- Operation Panel– user can make the most optimized X-Ray Control suitable to patients and the best image through simple key operations
- Smart Design– Camera type Port X IV is designed for 1 hand operations that offers convenient diagnosis. Further, its compactness improves the efficient use of work space.
- Grip Tie– Used while shooting or moving. The length can be adjusted for the operator and is very smooth & comfortable.

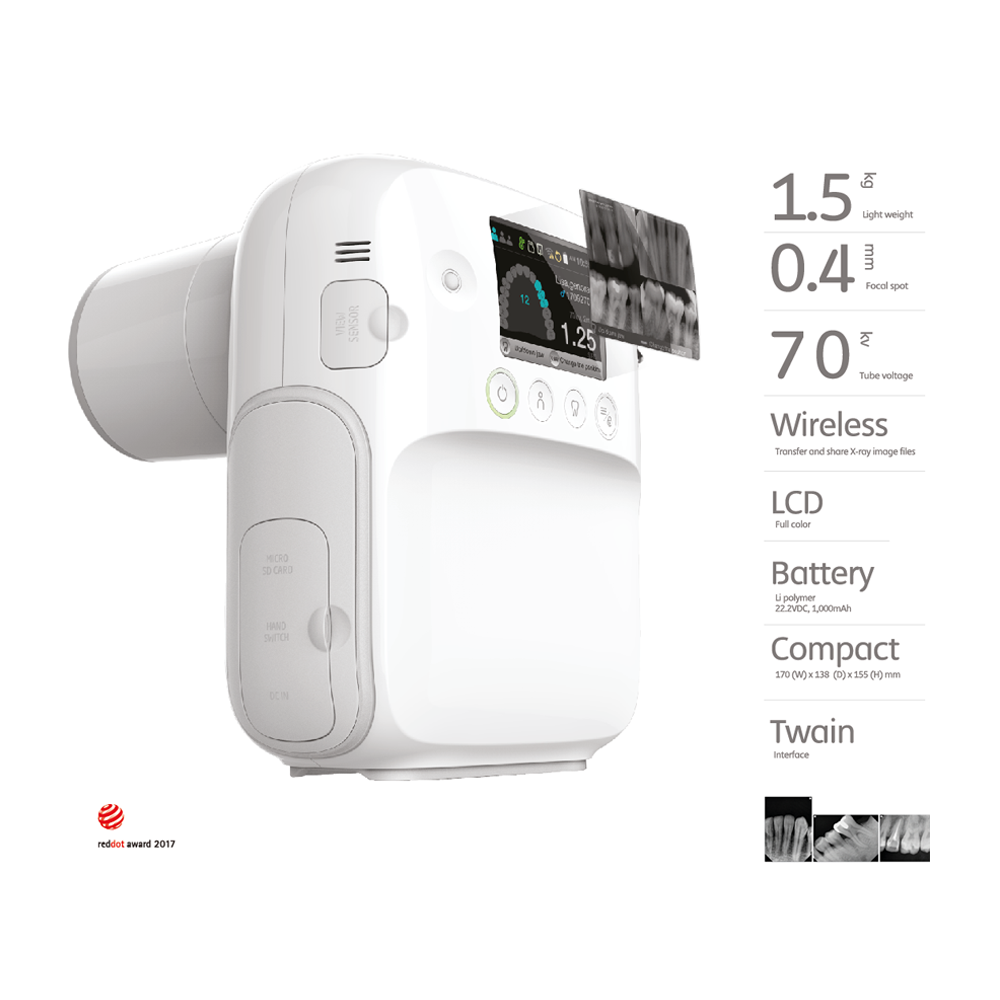

Technical Features:
| X-Ray Generator | Type | High Frequency Inverter |
| Power Output | 180W | |
| X-Ray Installation | Tube Voltage | 70kV |
| Tube Current | 2mA | |
| Anode Type | Stationary | |
| X-Ray Tube | Focal Spot | 0.4mm |
| Anode Angle | 20° | |
| X-Ray Control | Exposure Time | 0.01-2.0 Sec. |
| Power Requirement | DC | 22.2 V , 1000mAh |
| Weight | Main Unit | 1.5 Kg |
| Dimension | Main Unit | 170(W) x 138(D) x 155(H) mm |
